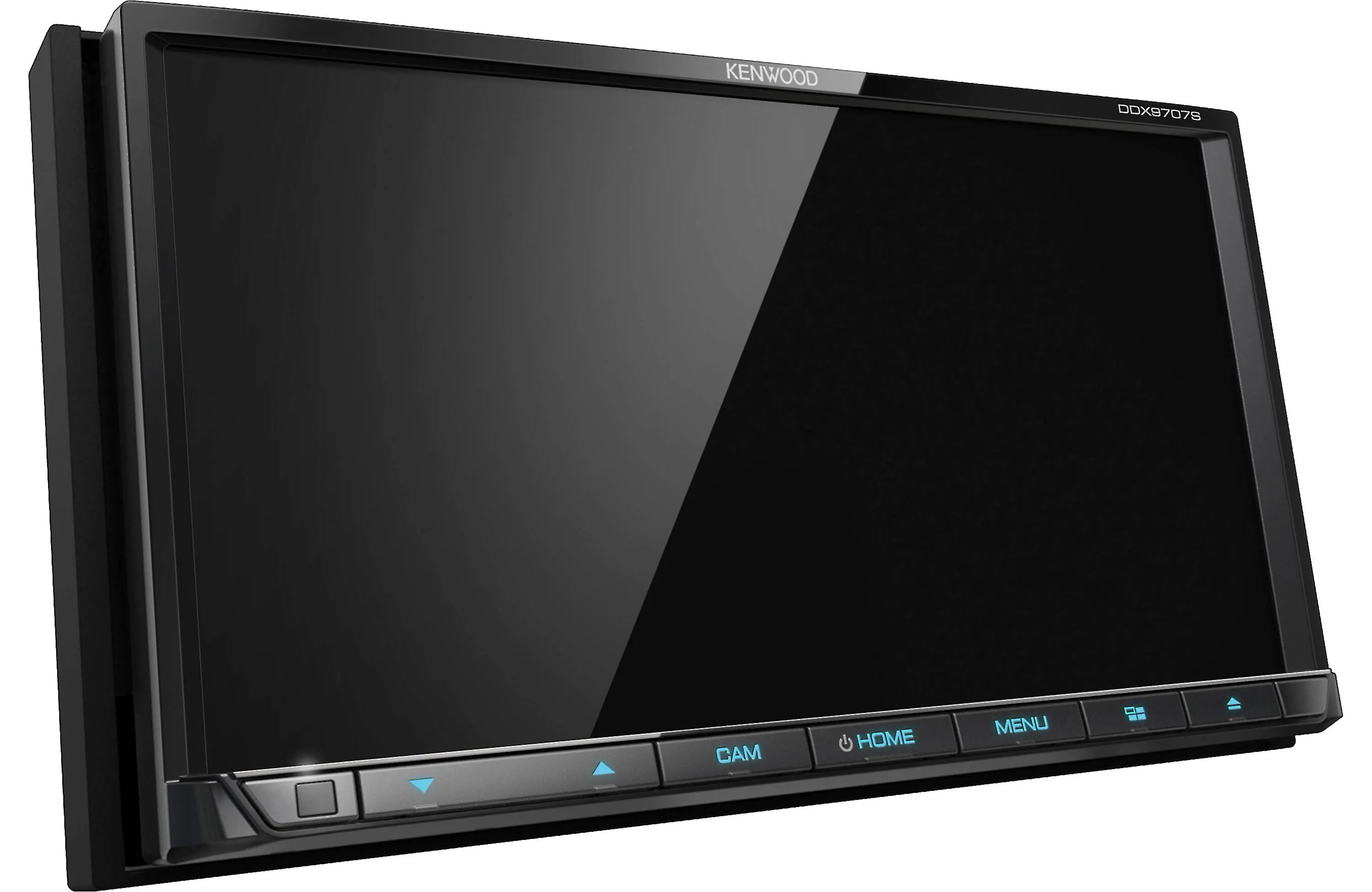

Kenwood DDX9707S DVD Receiver with Bluetooth
- 6.95" WVGA Monitor
- Android Auto & Android Auto Wireless
- Wired and Wireless Apple CarPlay
- Wireless Mirroring for Android
- USB Mirroring for iPhone and Android
- High-Resolution Audio
- Dash Camera Link
- 4 Camera Inputs
- 3 Preouts 4V
Clear Resistive Touch Panel
A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation

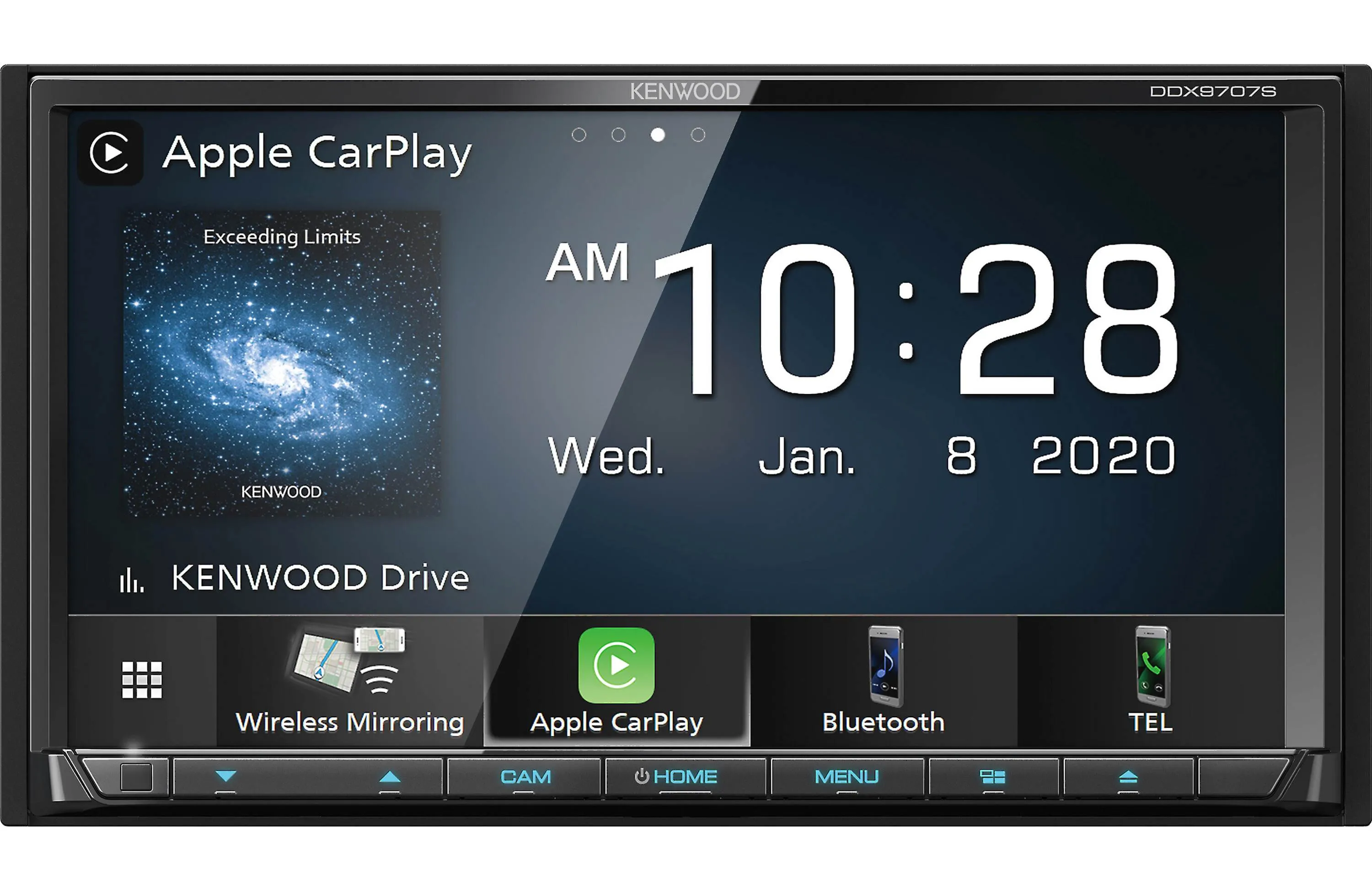

Customizable Multi Widget
Customize your Home Screen by selecting four shortcut/ information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, and more.
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
USB Mirroring
USB Mirroring via USB for iPhone & Android, 2-way Touch Control for Android.
4 Camera Inputs
Optional camera connection method for up to 4 cameras in various configurations.
Parking Guide Lines
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Dash Cam Link
Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.
Music Mix
Up to 5 Bluetooth devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
FLAC Supported
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
DUAL USB
Multiple USB ports provide additional inputs for music sources or smartphone battery charging.
Bright variable color LEDs can be adjusted to match any color dash lighting.
Specs

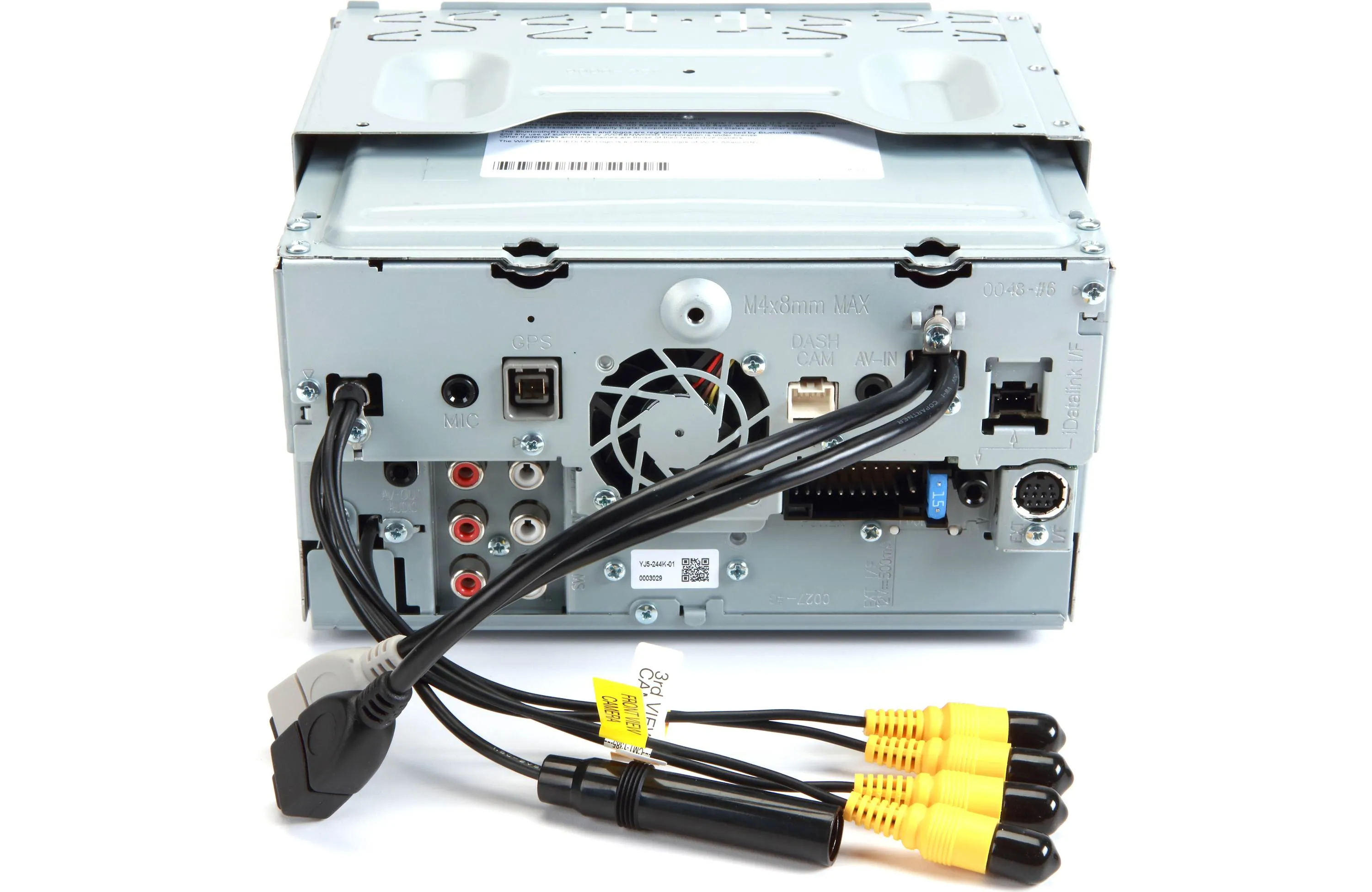

Expandability
AUX Input Mini (rear)
Audio/video Input Mini (rear)
USB Input Rear (2)
Backup Camera Input Yes
Second Camera Input Yes
CarPlay Wireless
Android Auto Wireless
Siri Control CarPlay only
Alexa Voice Control N
Android Control Yes
Memory Card Slot USB
Bluetooth Compatible Built-in
Satellite Radio Ready SiriusXM 3.0
HD Radio No
Navigation Optional
iPod Compatibility
Full size No
Nano No
Touch 6
iPhone 11ProMax/11Pro/11/XSMax/XS/XR/
General
RMS Power (CTA-2006) N/A
RMS Power (Manufacturer) 22 watts
Peak Output 50 watts
RMS Power Bandwidth 20-20kHz
Preamp Outputs 6-channel
Sub Preamp Outputs Yes
Switchable Rear Preamp Outputs No
Video Screen Yes
Navigation App Compatible (iOS) Apple, Google, Waze
Navigation App Compatible (Android) Google,Waze
Preamp Voltage 4 volts
Screen Size 6.95
Display Color
Key Button Color Variable
EQ Bands 13
Wireless Remote Optional
Steering Wheel Control Compatible Adapter required
Parts Warranty 1 Year
Labor Warranty 1 Year
Tuner
FM Sensitivity 9.3 dBf
European Tuning No
Seek/Scan Seek
Radio Data System Yes
File Playback
Music File Playback MP3,WMA,AAC,FLAC,WAV
High-res Playback WAV/FLAC (24-bit/192kHz)
